OmniCarbon Optima

1190

Lightweight, durable, and precisely engineered road wheelset.

Optima wheels use filament-wound carbon rims for exceptional strength, uniformity, and low weight. Each rim is molded with continuous fiber placement and requires no clear coat, keeping mass to a minimum while exceeding industry impact standards.

The wheels are built with Alpina aero spokes and self-locking nipples, using Ultralite Aero or Extralite Aero spokes where appropriate for optimal stiffness and longevity.

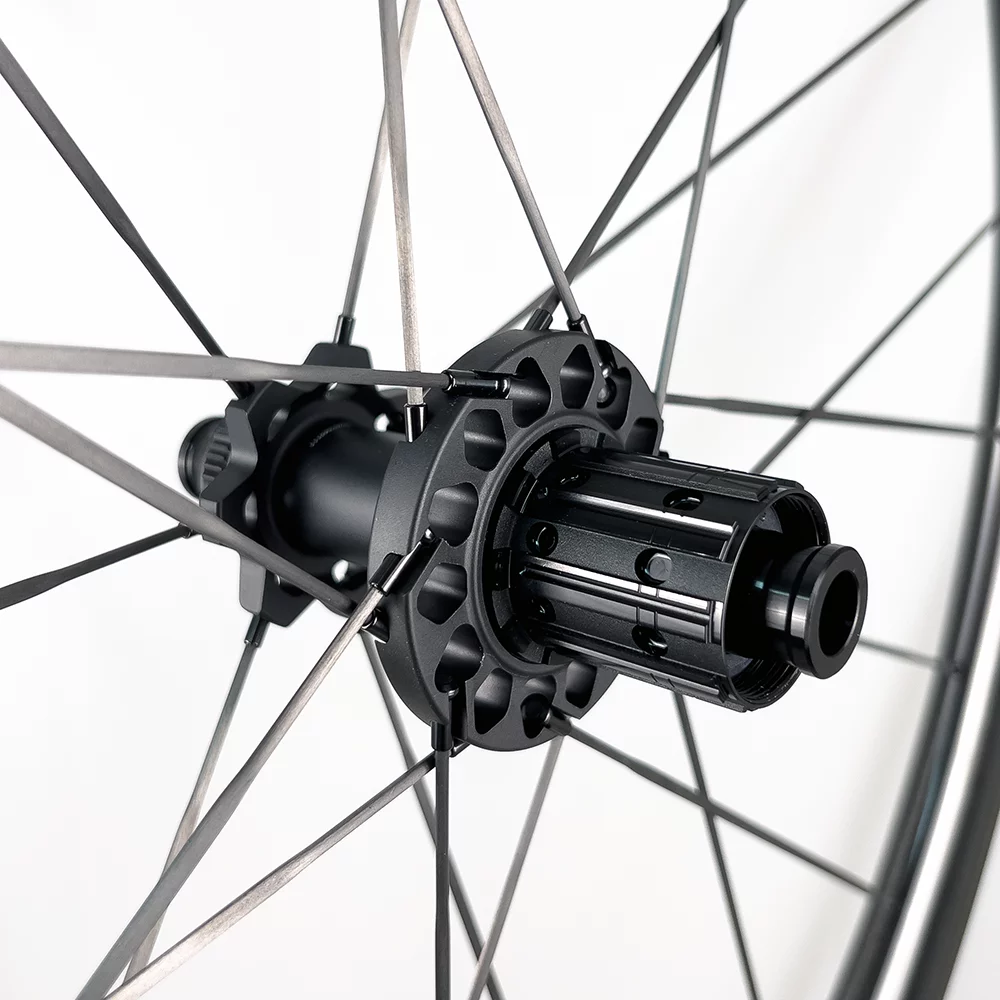

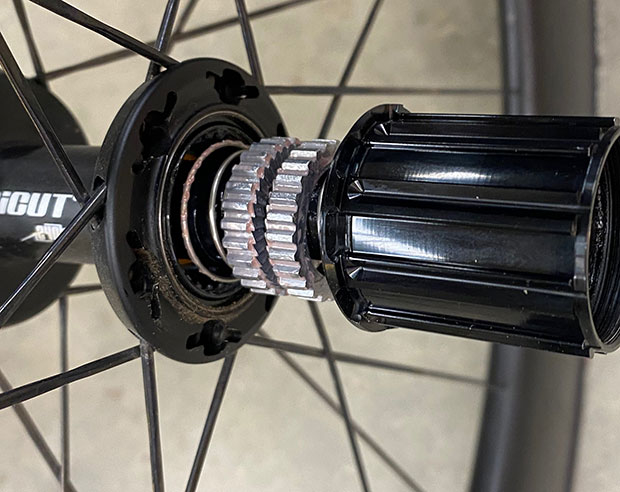

Bitex BX360 hubs with a 36T star ratchet provide fast engagement, reliable sealing, and long-term serviceability.

Every wheelset is hand-built with a maximum 5% spoke-tension variance, fully stress-relieved, and checked for precise dish and roundness. Optional wheel balancing is included.

Compatible with 28–45 mm tires.
Maximum system weight: 110 kg.

SKU: N/A Category: Tag:

Wheelset Specifications

Specification A B C
Rim Height 52/52mm 52/62mm 62/62mm
Internal Width 25 mm 25 mm 25 mm
External Width 32 mm 32 mm 32 mm
Wheelset Weight 1190 g 1260 g 1365 g
Brake Type Center Lock Disc Center Lock Disc Center Lock Disc
Hubset Bitex BX360 Bitex BX360 Bitex BX360
Bearings TPI Steel Bearings TPI Steel Bearings TPI Steel Bearings
Ratchet System 36T 36T 36T
Tire Size Range 28–45 mm 28–45 mm 28–45 mm
Tire Compatibility Tubeless / Clincher Tubeless / Clincher Tubeless / Clincher
Maximum Tire Pressure 120 psi 120 psi 120 psi
Maximum System Weight 110 kg 110 kg 110 kg



Spoke Specifications

Specification A B C
Spoke Count 24 / 24 24 / 24 24 / 24
Lacing Pattern 2× front, 2× rear (DS & NDS) 2× front, 2× rear (DS & NDS) 2× front, 2× rear (DS & NDS)
Front – NDS Ultralite Aero Ultralite Aero Ultralite Aero
Front – DS Ultralite Aero Ultralite Aero Extralite Aero
Rear – NDS Ultralite Aero Ultralite Aero Ultralite Aero
Rear – DS Ultralite Aero Extralite Aero Extralite Aero



Options

Freehub Options Shimano HG (Road) 11/12s │ Sram XDR │ Shimano Microspline (Gravel)
Nipple Options Self-locking Aluminium │ Self-locking Brass (+20g)
Weight

Freehub type

Shimano HG 11/12s (Road), Sram XDR, Shimano Microspline (Gravel)

Rim profile

52/52mm, 52/62mm, 62/62mm

Spoke Nipple Material

Aluminium, Brass (+20g)
